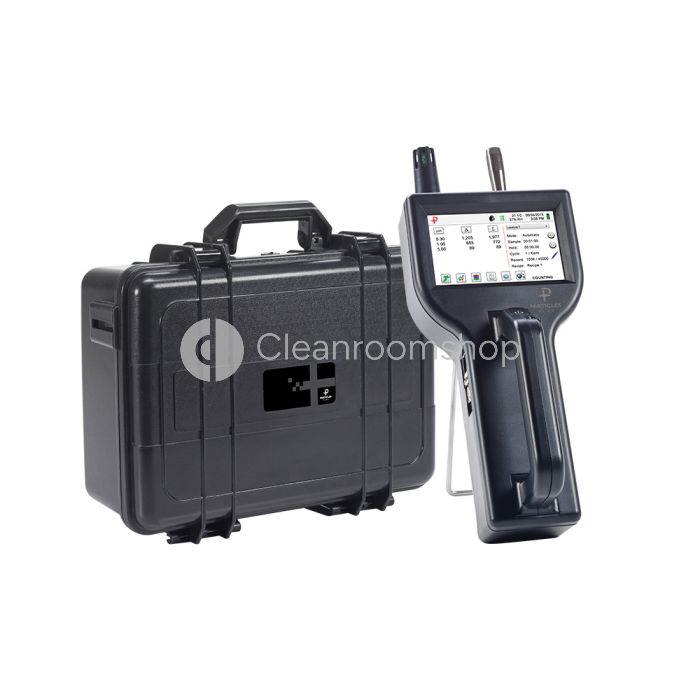

Particles Plus 8303 3 Channel Handheld Particle Counter

HPPC3

  • Type: Handheld laser particle counter
  • Included: Tripod, case, accessory kit
  • Battery: 10.5 hours, supporting non-stop production from a single charge
  • Data: View on screen or export via USB and ethernet
  • Usability: Accurate, user friendly, easy to configure
  • Channel:  3 user-selectable channels, 0.3–25µm
  • Display: Large 4.3" touch screen colour display
  • Calibration: 12 months, meets ISO 21501-4, ongoing service available
  • Warranty: 1 year (6 months for internal pumps)
  • Flow rate: 0.1 CFM (2.83 LPM)
  • Particles Plus code: HH-8303-1

Scroll down for full specification

£2,710.00
Order now for Next Day Delivery
Fast Delivery view delivery details

We Offer Same Day Despatch on all stock items, Monday - Friday on orders placed before 16:00 GMT. Next day delivery is available to certain shipping Destinations.

View more details
Technical Support we're here to help
Product pdf Add to Quote Add to Compare
  • 8303 with Standard Calibration: 0.3, 0.5 and 5.0 μm
  • Ongoing calibration service available providing you peace of mind, the unit remains compliant according to ISO 21501-4.
  • Remote diagnostics available
  • Users can define 'recipes' for data collection points
  • Free yearly calibration reminder service available.  Email service@connect2cleanrooms.com
Accessory Kit
  • Isoprobe Threaded 0.1 CFM (2.83 LPM) Nickel Plated Aluminum
  • Purge Filter Assembly 0.1 CFM (2.83 LPM)
  • Rechargeable Battery 55Wh - Greater than 10 hour battery life
  • Power Supply 15V ~2amp 100-240VAC (Select adapter -US, -EU, -UK or -CN)
  • USB Cable 6' (1.8m)
  • Calibration Certificate
  • Quick Start Guide
  • Carry case included
  • User Manual and Instrument Management Software (USB Key)
  • Supplied with UK plug (US, EU, CN optional – please enquire)
Why Choose 8503 3 Channel Handheld Particle Counter?
  • Pinpoints contamination sources quickly with visual and audible indicators via the patented, real time meter.
  • IP addressable, network capable, operation.
  • Icon driven touch screen interface.
  • The Particles Plus 8303 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
  • Easy to configure, this instrument displays up to 3 size channels as well as (optional) temperature and relative humidity.
  • View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports.
  • Export to Particles Plus data-download software or USB key.
  • Particles Plus counters can be controlled and monitored remotely via web browser.
  • The 8303 has a mass concentration mode that approximates density in μg/m³.



Special Delivery Details

Particle counters require calibration in our calibration lab before they can be shipped. If you require your particle counter on next-day delivery, please place your order by 12noon to ensure calibration can be completed same-day.

*Free  demo session subject to availability - please enquire for details.

Country of Origin: USA
More Information
Brand Particles Plus
Type Handheld
Lead time (if out of stock) 5-10 days
Pack Size 1
Applications For cleanroom monitoring through airborne particle counting the 6 channel particle counter is easy to use, with versatile output options.
Country of origin USA
Technical data Most advanced multi-processor on the market for simultaneous operations
Greater than 10 hour battery life with idle mode
8303 with Standard Calibration: 0.3, 0.5 and 5.0 ?m
Custom size calibration (optional extra - please enquire)
New Instant Management Software (IMS). Able to download to PC, remote diagnostics, sensor calibration and real time data
Ethernet, optional WiFi, MODBUS ASCII od TCP
Hard plastic enclosure
Sterility Non-Sterile
Warranty 2 year warranty (6 months warranty only for the internal pumps)
Channel 3 Channel
Grading system Advanced
