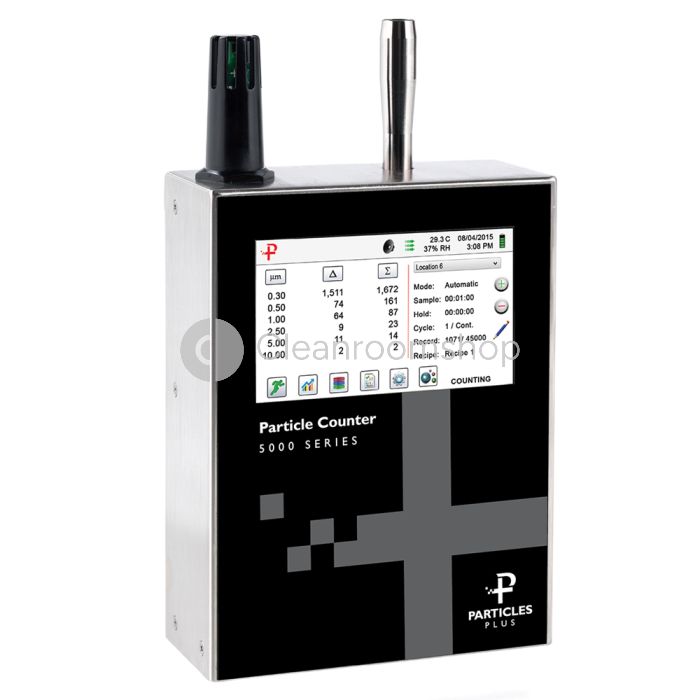

https://www.cleanroomshop.com/5002-series-remote-particle-counters-with-internal-pump.html4867Particles Plus 5301P w/ internal pump handheld counterhttps://www.cleanroomshop.com/media/catalog/product/5/3/5301_with_pump.jpg3500.00003500.0000GBPInStock/MONITORING EQUIPMENT & STATIONERY/MONITORING EQUIPMENT & STATIONERY/Particle Counters<ul>
<li><strong>Type:</strong> Remote laser particle counter</li>
<li><strong>Battery: </strong>10.5 hours, supporting non-stop production from a single charge</li>
<li><strong>Demo:</strong> Free session available*</li>
<li><strong>Data:</strong> View on screen or export via USB and ethernet</li>
<li><strong>Usability:</strong> Accurate, user friendly, easy to configure</li>
<li><strong>Channel:</strong> 6 user-selectable channels, 0.3 to 25µm</li>
<li><strong>Display:</strong> Large 4.3" touch screen colour display</li>
<li><strong>Calibration:</strong> 12 months, meets ISO 21501-4, ongoing service available</li>
<li>Internal pump with automatic flow control included</li>
<li><strong>Warranty:</strong> 2 year (6 months for internal pumps)</li>
<li><strong>Flow rate:</strong> 0.1 CFM (2.83 LPM)</li>
<li><strong>Particles Plus code:</strong> RM-5301-1 | RM-5301IP-1</li>
</ul> <ul>
<li>Measures 0.3 μm to 25 μm (Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm)</li>
<li>0.1 CFM (2.83 LPM) flow rate</li>
<li>Long-life laser diode technology</li>
<li>Measures up to 6 channels of simultaneous data</li>
<li>Approximates mass concentration in μg/m³</li>
<li>Large easy-to-use icon driven color touch screen display</li>
<li>(Optional) temperature and relative humidity probe</li>
<li>Internal vacuum pump included</li>
<li>Stores up to 45,000 sample records for on-board data redundancy</li>
<li>Easy configuration and transferable from instrument to instrument</li>
<li>Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.</li>
<li>Static or dynamic IP address (DHCP)</li>
<li>Internal audible alarm</li>
<li>User-selectable channel sizes</li>
<li>Complies with ISO 21501-4 and JIS B9921 standards</li>
<li>Easy to clean and wipe down with minimal particle traps</li>
<li>Versatile mounting options</li>
<li>Seamless integration into a facility monitoring system</li>
<li>Light weight stainless steel enclosure</li>
<li>2 years limited warranty, 6 months for pump. No warranty on exhaust filter</li>
</ul>
<p> </p>
<div><strong>Special Delivery Details</strong></div>
<div> </div>
<div>Particle counters require calibration in our calibration lab before they can be shipped. If you require your particle counter on next-day delivery, please place your order by 12noon to ensure calibration can be completed same-day.</div>add-to-cartParticles Plus10-15 days1USABagged and boxed in class 9 environment.Non-Sterile2 years6 ChannelsupplierCosttags
Measures 0.3 μm to 25 μm (Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm)
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Large easy-to-use icon driven color touch screen display
(Optional) temperature and relative humidity probe
Internal vacuum pump included
Stores up to 45,000 sample records for on-board data redundancy
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
Static or dynamic IP address (DHCP)
Internal audible alarm
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Versatile mounting options
Seamless integration into a facility monitoring system
Light weight stainless steel enclosure
2 years limited warranty, 6 months for pump. No warranty on exhaust filter
Special Delivery Details
Particle counters require calibration in our calibration lab before they can be shipped. If you require your particle counter on next-day delivery, please place your order by 12noon to ensure calibration can be completed same-day.
A. Hi, thank you for your enquiry. We offer an in-house calibration service and are the only certified UK lab for Particles Plus units. Please email service@connect2cleanrooms.com detailing your calibration requirements and our team can provide you with the full details and pricing for this service.
