Particles Plus® 6000 Series Particle Counter

Choose & Buy

Product Code	Stock Status	Model	Price	Quantity
PPPC6310	Available Delivery within 3 weeks	Particles Plus 6310	£9,203.10	Qty
PPPC6510	Available Delivery within 2-3 weeks	Particles Plus 6510	£9,119.40	Qty
PPPC6550	Available Delivery within 3 weeks	Particles Plus 6550	£9,203.10	Qty
PPPC6575	Available Delivery within 3 weeks	Particles Plus 6575	£10,040.10	Qty
PPPC65100	Available Delivery within 3 weeks	Particles Plus 65100	£10,877.10	Qty


Product Code

Stock Status

Model

Price

Quantity

PPPC6310

Available

Delivery within 3 weeks

Particles Plus 6310

£9,203.10

PPPC6510

Available

Delivery within 2-3 weeks

Particles Plus 6510

£9,119.40

PPPC6550

Available

Delivery within 3 weeks

Particles Plus 6550

£9,203.10

PPPC6575

Available

Delivery within 3 weeks

Particles Plus 6575

£10,040.10

PPPC65100

Available

Delivery within 3 weeks

Particles Plus 65100

£10,877.10

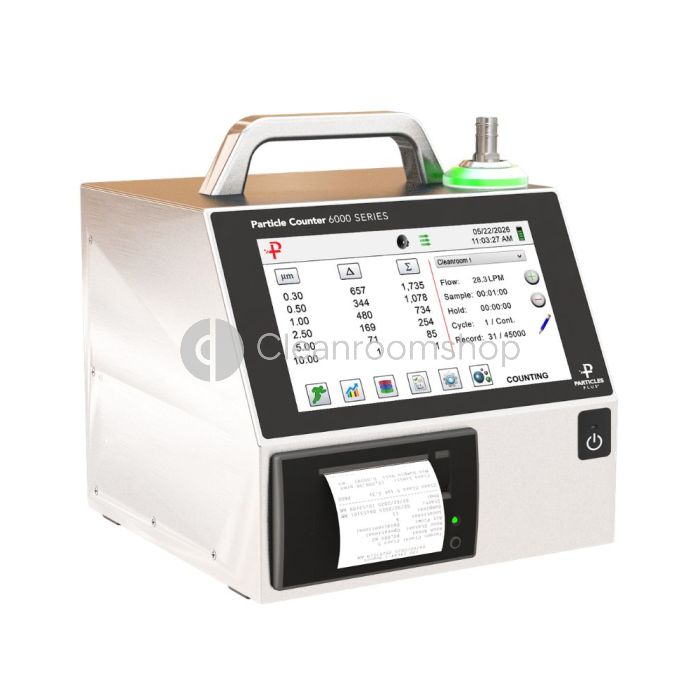

Particles Plus® 6000 Series Particle Counters

The Particles Plus® 6000 Series range of portable, airborne particle counters are ideal for aseptic fill, routine monitoring, flow bench validation, and recovery testing for controlled facilities with stringent environmental monitoring requirements.

Designed with simple configuration, easy cleaning, and optimal performance in mind, the Particles Plus® 6000 Series Portable Particle Counters include a large touch screen display, a powerful removeable battery, and a seamless 316 stainless steel casing.

The renowned Particles Plus® software allows users to select up to 6 channels, store up to 45,000 sample records and 1,000 sample locations, and measure particles from 0.3μm, giving you confidence and accuracy across the monitoring data you rely on every day.

Remote and portable laser particle counter
12-month calibration, meeting ISO 21501-4
Internal and internet-enabled 24/7 remote diagnostics
7" intuitive touch screen display
Accurate, user friendly, and easy to configure
6 user-selectable channels
View data on screen, via built-in printer, or export using ethernet, USB, or Wi-Fi
Store up to 45,000 sample records, 1,000 sample locations, and 50 recipes
Counting efficiency 50% @ 0.5μm; 100% for particles >0.75μm per JIS
Manufactured with 316 stainless steel encloser
Easy to clean and wipe down with minimal particle traps
Removeable Li-ion battery
110 to 240 VAC 50/60 Hz universal in-line power supply
2-year warranty

Model specifications

Feature

Particles Plus®
6310 Series

Particles Plus®
6510 Series

Particles Plus®
6550 Series

Particles Plus®
6575 Series

Particles Plus®
65100 Series

Flow Rate

28.3 LPM (1.0 CFM)

50 LPM

75 LPM

100 LPM

Size Range

0.3 µm – 25 µm

0.5 µm – 25 µm

Battery Life

10+ hours

12+ hour

6+ hours

4.5+ hours

Additional Batteries

x2 batteries

x3 batteries

Accessory kit

Operating manual
IMS software on USB flash drive
Thermal printer
Isokinetic probe
Sample tubing
Purge filter
Data download software
USB cable
Power supply

Product Icon Attributes	For ISO cleanrooms, Suitable for GMP A/B/C/D
Brand	Particles Plus
Lead time (if out of stock)	2-3 weeks
Pack Size	1
Materials	316 stainless steel
Length	20.6cm
Height	21.6cm
Applications	Engineered with a proprietary, high-definition optical sensor delivering an industry’s highest signal-to-noise ratio (SNR), the 6000 Series provides unmatched sizing resolution and accuracy. Whether you are performing routine ISO 14644-1 certifications, EU GMP Annex 1 compliance mapping, 21 CFR Part 11 data integrity audits, or diagnosing transient contamination events, the 6000 Series delivers the rapid, reliable data your process demands.
Country of origin	USA
Technical data	6 Channels, 7” (17.78 cm) capacitive touchscreen, Compact, 8” stainless steel cube-shaped design, cleanroom-compliant and when carried, the handle provides perfect center-of-gravity balance, Ethernet (TCP/IP), USB, Modbus TCP/RTU, and op1onal 802.11 b/g wireless
Sterility	Non-Sterile
Cleanroom class	GMP Grade A
Plug type	UK
Calibration	All Particles Plus® particle counter units are calibrated to ISO 21501 standards, and calibrations are performed to exacting tolerances using N.I.S.T traceable equipment and particle media.

Product Icon Attributes

For ISO cleanrooms, Suitable for GMP A/B/C/D

Brand

Particles Plus

Lead time (if out of stock)

2-3 weeks

Pack Size

Materials

316 stainless steel

Length

20.6cm

Height

21.6cm

Applications

Engineered with a proprietary, high-definition optical sensor delivering an industry’s highest signal-to-noise ratio (SNR), the 6000 Series provides unmatched sizing resolution and accuracy. Whether you are performing routine ISO 14644-1 certifications, EU GMP Annex 1 compliance mapping, 21 CFR Part 11 data integrity audits, or diagnosing transient contamination events, the 6000 Series delivers the rapid, reliable data your process demands.

Country of origin

USA

Technical data

6 Channels, 7” (17.78 cm) capacitive touchscreen, Compact, 8” stainless steel cube-shaped design, cleanroom-compliant and when carried, the handle provides perfect center-of-gravity balance, Ethernet (TCP/IP), USB, Modbus TCP/RTU, and op1onal 802.11 b/g wireless

Sterility

Non-Sterile

Cleanroom class

GMP Grade A

Plug type

Calibration

All Particles Plus® particle counter units are calibrated to ISO 21501 standards, and calibrations are performed to exacting tolerances using N.I.S.T traceable equipment and particle media.
