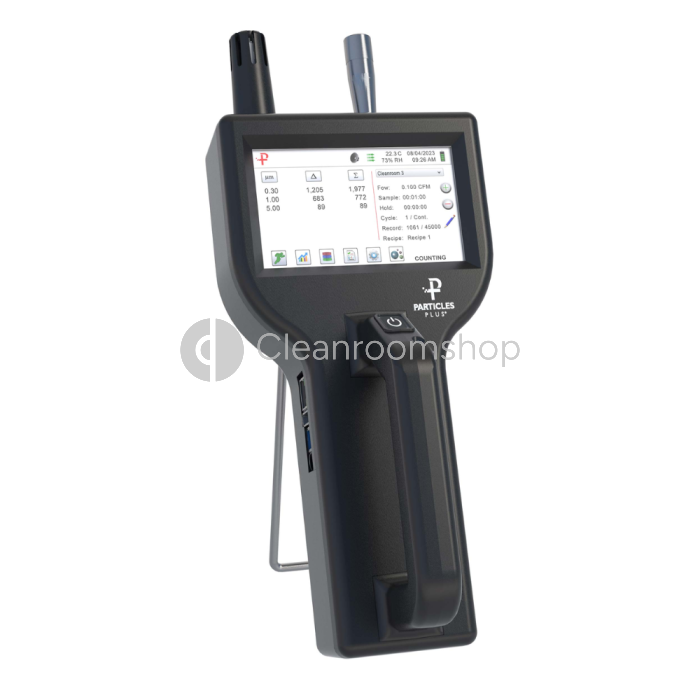

Particles Plus 8303 3-channel Handheld Particle Counter

Particles Plus 8303 3 channel handheld Particle Counter

Portable handheld particle counter
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Factory calibrated at 0.3, 0.5 and 5.0 μm
Long life laser diode technology for reliable performance
Approximates mass concentration in μg/m³ with density and refractive index corrections
User selectable particle monitoring sizes from 0.5 μm to 10 μm including TPM of up to 25.0 μm
Large, intuitive color touch screen display with an easy-to-use icon-driven interface
Temperature and relative humidity probe included
Resolve issues quickly from any location with internet-enabled remote diagnostics
Annotation function allows user to save 32 character notations to a live sample record
Over 10 hours continuous sampling on a single charge
Integrated handle for one-handed operation
Common interface ensures ease of use across all products
Connect using Ethernet or RS 485 or RS232
Displays user-definable reports for ISO 14644-1 and EU GMP Annex 1
Built-in visual and audible alarms with comprehensive alarm management
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Equipped with a standard 1/4”–20 female mount for tripod compatibility
Lightweight high-impact injection molded plastic enclosure
Ongoing calibration service with Cleanroomshop providing you peace of mind, the unit remains compliant according to ISO 21501-4
2 year Limited Warranty (Extended and Lifetime warranties available)

Accessory Kit (included)

Isoprobe Threaded 0.1 CFM (2.83 LPM) Nickel Plated Aluminum
Purge Filter Assembly 0.1 CFM (2.83 LPM)
Rechargeable Battery 55Wh - Greater than 10 hour battery life
Temperature / RH Probe 32-140°F (0-60°C) ±1°F (0.5°C), 0-100% ±2%
Power Supply 15V ~2amp 100-240VAC (Select adapter -US, -EU, -UK or -CN)
USB Cable 6' (1.8m)
Calibration Certificate
Quick Start Guide
User Manual and Instrument Management Software (USB Key)
Supplied with UK plug (US, EU, CN optional – please enquire)

Why Choose 8303 3 Channel Handheld Particle Counter?

Pinpoints contamination sources quickly with visual and audible indicators for spot monitoring
IP addressable, network capable, patented with real time meter
Icon driven touch screen interface
The Particles Plus 8303 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM)
Easy to configure, this instrument displays up to 3 user-selectable size channels as well as (optional) temperature and relative humidity
View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via (optional) printer, USB key, real-time through its versatile output options or export to Particles Plus data-download software
Particles Plus counters can be controlled and monitored remotely via web browser. The 8303 has a mass concentration mode that approximates density in μg/m³.

Special Delivery Details

Particle counters require calibration in our calibration lab before they can be shipped. If you require your particle counter on next-day delivery, please place your order by 12noon to ensure calibration can be completed same-day.

Brand	Particles Plus
Type	Handheld
Lead time (if out of stock)	10-15 days
Pack Size	1
Length	130mm
Height	311mm
Applications	For cleanroom monitoring through airborne particle counting the 3 channel particle counter is easy to use, with versatile output options.
Country of origin	USA
Technical data	Handheld particle monitoring
Sterility	Non-Sterile
Warranty	2 year warranty (6 months warranty only for the internal pumps)
Channel	3 Channel
Calibration	Units are supplied calibratied and ongoing yearly calibration is available from Cleanroomshop's in-house lab. 10% off your first calibration with every purchase.

Brand

Particles Plus

Type

Handheld

Lead time (if out of stock)

10-15 days

Pack Size

Length

130mm

Height

311mm

Applications

For cleanroom monitoring through airborne particle counting the 3 channel particle counter is easy to use, with versatile output options.

Country of origin

USA

Technical data

Handheld particle monitoring

Sterility

Non-Sterile

Warranty

2 year warranty (6 months warranty only for the internal pumps)

Channel

3 Channel

Calibration

Units are supplied calibratied and ongoing yearly calibration is available from Cleanroomshop's in-house lab. 10% off your first calibration with every purchase.
