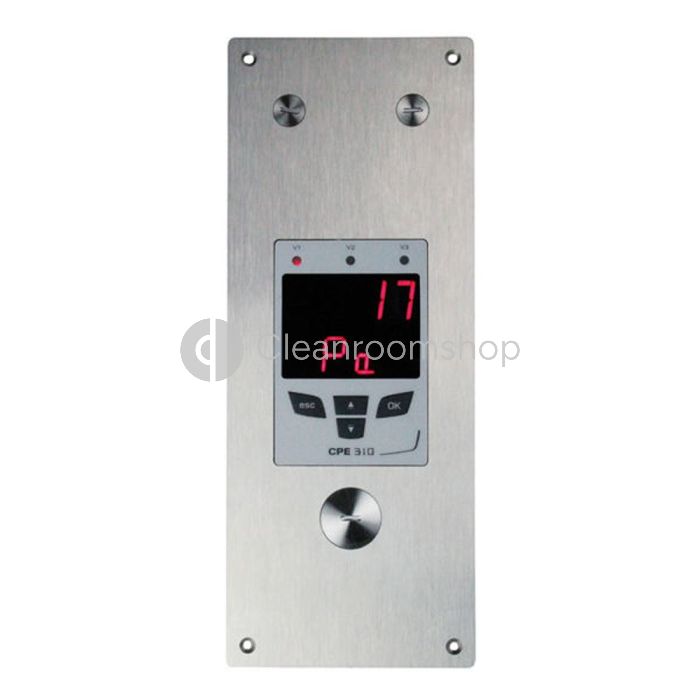

Flush-mount Pressure Transmitter CPE 310

FPT

Ranges from 0/+10 Pa to -1000/+1000 Pa
Configerable intermediate and centre zero ranges
Sold individually
Non-stock item: 10-15 days

Buy in Bulk and Save

Qty	Unit Price	Saving
1 -5	£504.00	-
6	£428.40	16%

Only %1 left

From £504.00

Type

Delivery within 2 weeks

From £504.00

Qty

Fast Delivery view delivery details

Technical Support we're here to help

Product pdf Add to Quote Add to Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

https://www.cleanroomshop.com/66-flush-mount-pressure-transmitter-cpe-310.html 1057 Flush-mount Pressure Transmitter CPE 310 https://www.cleanroomshop.com/media/catalog/product/f/p/fpt1_-_1.jpg 504 504 GBP InStock /MONITORING EQUIPMENT & STATIONERY /MONITORING EQUIPMENT & STATIONERY/Measuring Instruments/Pressure Gauges <ul> <li>Ranges from 0/+10 Pa to -1000/+1000 Pa</li> <li>Configerable intermediate and centre zero ranges</li> <li>Sold individually</li> <li>Non-stock item: 10-15 days</li> </ul> <ul> <li>Flush-mount stainless differential pressure transmitter</li> <li>Low differential pressure option, analogue and modbus outputs and auto zero</li> <li>Optional input and display of two other values eg, temperature and humidity from other sensors</li> <li>It can be easily calibrated without removal</li> <li>Range in Pascals: choose from 0-100 or 0-500</li> </ul> GBP 0 0 975 Flush-mount Pressure Transmitter CPE 310 0-100 504 504 https://www.cleanroomshop.com/media/catalog/product/f/p/fpt1.jpg InStock 0-100 10-15 days 1 Power supply: 24 Vac / Vdc ±10% Output: 1 x 4-20 mA or 1 x 0-10 V (4 wires). Maximum load : 500 Ohms (4-20 mA) Minimum load : 1 K Ohms (0-10 V) Galvanic isolation: on the output Consumption: 5 VA Relays: 2 RCR relays 6A / 230 Vac Visual alarms: 2 dual color LED Audible alarm: buzzer Electro-magnetical compatibility: EN 61 326 Electrical connection: screw terminal block for cables � 1.5 mm� max RS 485 communication: digital - RTU Modbus protocol communication speed configurable from 2400 to 115200 Bauds RS 232 communication: digital - ASCII, proprietary protocol Working temperature (housing): 0 to +50°C Storage temperature: -10 to +70°C Environment: air and neutral gases Full Technical Data Sheet available on request Avoid aggressive solvents. Protect the transmitter and probes from any cleaning product containing formol, which may be used for cleaning rooms or ducts.

More Information
Lead time (if out of stock)	10-15 days
Pack Size	1
Technical data	Power supply: 24 Vac / Vdc ±10% Output: 1 x 4-20 mA or 1 x 0-10 V (4 wires). Maximum load : 500 Ohms (4-20 mA) Minimum load : 1 K Ohms (0-10 V) Galvanic isolation: on the output Consumption: 5 VA Relays: 2 RCR relays 6A / 230 Vac Visual alarms: 2 dual color LED Audible alarm: buzzer Electro-magnetical compatibility: EN 61 326 Electrical connection: screw terminal block for cables � 1.5 mm� max RS 485 communication: digital - RTU Modbus protocol communication speed configurable from 2400 to 115200 Bauds RS 232 communication: digital - ASCII, proprietary protocol Working temperature (housing): 0 to +50°C Storage temperature: -10 to +70°C Environment: air and neutral gases Full Technical Data Sheet available on request
Warning	Avoid aggressive solvents. Protect the transmitter and probes from any cleaning product containing formol, which may be used for cleaning rooms or ducts.

More Information

Lead time (if out of stock)

10-15 days

Pack Size

Technical data

Power supply: 24 Vac / Vdc ±10%
Output: 1 x 4-20 mA or 1 x 0-10 V (4 wires).
Maximum load : 500 Ohms (4-20 mA)
Minimum load : 1 K Ohms (0-10 V)
Galvanic isolation: on the output
Consumption: 5 VA
Relays: 2 RCR relays 6A / 230 Vac
Visual alarms: 2 dual color LED
Audible alarm: buzzer
Electro-magnetical compatibility: EN 61 326
Electrical connection: screw terminal block for cables � 1.5 mm� max
RS 485 communication: digital - RTU Modbus protocol
communication speed configurable
from 2400 to 115200 Bauds
RS 232 communication: digital - ASCII, proprietary protocol
Working temperature (housing): 0 to +50°C
Storage temperature: -10 to +70°C
Environment: air and neutral gases
Full Technical Data Sheet available on request

Warning

Avoid aggressive solvents. Protect the transmitter and probes from any cleaning product containing formol, which may be used for cleaning rooms or ducts.
