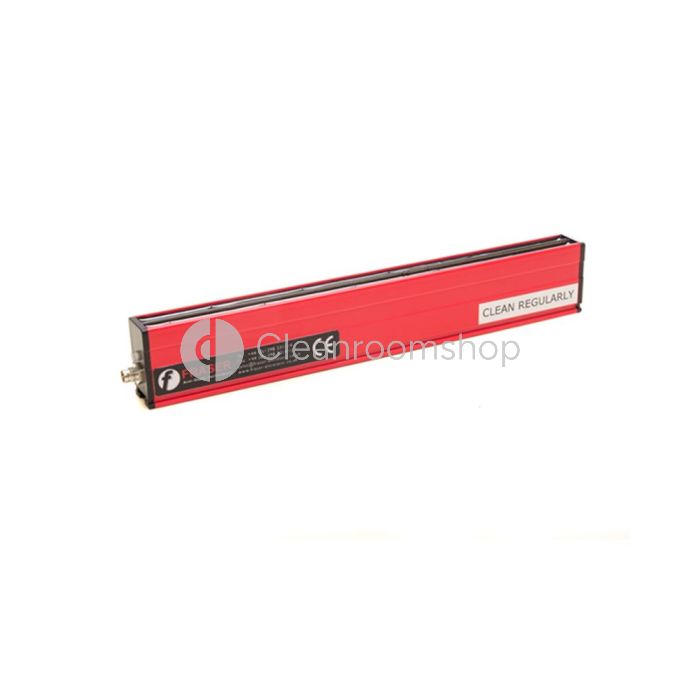

3024L Ionising Bar

ISB

Ultimate static eliminator for all forms of manufacturing
Can be used at filter faces to neutralise static airflow
Ideal for process, flow, assembly lines
Static neutralisation to meet the requirements of high performance machinery
Available in 2 sizes, 42 x 22 x 909 mm (ISB900) & 42 x 22 x 1209 mm ISB1200
Can be powered by the E3024 Power Supply Unit or connect to 24V DC supply using the E3024 cable
Fraser code: 3850HP-SC-1100-2

Scroll down for full specification

From £750.00

Size

Order now for Next Day Delivery

From £750.00

Qty

Fast Delivery view delivery details

Technical Support we're here to help

Product pdf Add to Quote Add to Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

https://www.cleanroomshop.com/405-ionstorm-bar-1062.html 339 3024L Ionising Bar https://www.cleanroomshop.com/media/catalog/product/i/s/isb900_-_1_3.jpg 750 750 GBP InStock /BRANDS/ANTI-STATIC & ESD CONTROL /BRANDS/ANTI-STATIC & ESD CONTROL/Static Control Products /BRANDS/ANTI-STATIC & ESD CONTROL/Anti-Static Cleaning /CLEANROOMS, LAMINAR FLOW & TRAINING/Cleanroom Accessories & Spares /BRANDS/Fraser Anti-Static 28 29 31 120 164 1 2 203 28 10 <ul> <li>Ultimate static eliminator for all forms of manufacturing</li> <li>Can be used at filter faces to neutralise static airflow</li> <li>Ideal for process, flow, assembly lines</li> <li>Static neutralisation to meet the requirements of high performance machinery</li> <li>Available in 2 sizes, 42 x 22 x 909 mm (ISB900) & 42 x 22 x 1209 mm ISB1200</li> <li>Can be powered by the <a href="/573-e3024-power-supply.html">E3024 Power Supply Unit</a> or connect to 24V DC supply using the <a href="/574-e3024-power-supply.html">E3024 cable</a></li> <li>Fraser code: 3850HP-SC-1100-2</li> </ul> <ul> <li>The ultimate static eliminator for machinery manufacturers: compact with built in electronics, 24 VDC supply and very powerful performance</li> <li>Static neutralisation to meet the requirements of high performance machinery</li> <li>100% coverage. Effective length = overall length. No dead zone</li> <li>Available in 2 sizes –  42 x 22 x 1209 mm & 42 x 22 x 909 mm</li> <li>The most powerful compact ionising bar on the market and the only bar of its type with an active ionisation length equal to its physical length</li> <li>Ionising bar to be positioned approximately 200mm from the surface to ensure that the ions are neutralised, hence preventing static</li> </ul> GBP 0 0 https://www.cleanroomshop.com/media/catalog/product/i/s/isb900_-_2_2.jpg 321 Ionising Bar 24V DC 900mm 750 750 https://www.cleanroomshop.com/media/catalog/product/i/s/isb900_-_1.jpg InStock 42 x 22 x 909mm 322 Ionising Bar 24V DC 1200mm 847 847 https://www.cleanroomshop.com/media/catalog/product/i/s/isb900_-_1_1.jpg InStock 42 x 22 x 1209mm Fraser 7-10 DAYS 1 Static neutralisation for cleanroom and none cleanroom environments Electrical Supply: 24V DC (21-28V) maximum current required 0.5A. M8 connector. The M8 x 4 core cable must be ordered separately - see the cable option on www.cleanroomshop.com Remote Monitor: Sends 24V signal to the PLC or other destination. This voltage is taken from the power to the Bar - no additional power source is required High Voltage Supply: Up to 11kV supply integrated into Bar Construction: FR-ABS Industrial grade extrusion, epoxy resin. Ionising spikes made of tungsten - long lasting Protection Classification: IP66. Fully sealed Environment: -10 TO 55ºc, 70% rH non-condensing Options: 90-250v ac POWER SUPPLY. Code E3024-PSU Power Unit - CE, UL, CB Cardboard carton Dispose under WEEE Regulations or return to supplier Static neutralisation to meet the requirements of high performance machinery

More Information
Brand	Fraser
Lead time (if out of stock)	7-10 DAYS
Pack Size	1
Applications	Static neutralisation for cleanroom and none cleanroom environments
Technical data	Electrical Supply: 24V DC (21-28V) maximum current required 0.5A. M8 connector. The M8 x 4 core cable must be ordered separately - see the cable option on www.cleanroomshop.com Remote Monitor: Sends 24V signal to the PLC or other destination. This voltage is taken from the power to the Bar - no additional power source is required High Voltage Supply: Up to 11kV supply integrated into Bar Construction: FR-ABS Industrial grade extrusion, epoxy resin. Ionising spikes made of tungsten - long lasting Protection Classification: IP66. Fully sealed Environment: -10 TO 55ºc, 70% rH non-condensing Options: 90-250v ac POWER SUPPLY. Code E3024-PSU Power Unit - CE, UL, CB
Packaging	Cardboard carton
Disposal	Dispose under WEEE Regulations or return to supplier
Antistatic properties	Static neutralisation to meet the requirements of high performance machinery

More Information

Brand

Fraser

Lead time (if out of stock)

7-10 DAYS

Pack Size

Applications

Static neutralisation for cleanroom and none cleanroom environments

Technical data

Electrical Supply: 24V DC (21-28V) maximum current required 0.5A. M8 connector. The M8 x 4 core cable must be ordered separately - see the cable option on www.cleanroomshop.com
Remote Monitor: Sends 24V signal to the PLC or other destination. This voltage is taken from the power to the Bar - no additional power source is required
High Voltage Supply: Up to 11kV supply integrated into Bar
Construction: FR-ABS Industrial grade extrusion, epoxy resin. Ionising spikes made of tungsten - long lasting
Protection Classification: IP66. Fully sealed
Environment: -10 TO 55ºc, 70% rH non-condensing
Options: 90-250v ac POWER SUPPLY. Code E3024-PSU
Power Unit - CE, UL, CB

Packaging

Cardboard carton

Disposal

Dispose under WEEE Regulations or return to supplier

Antistatic properties

Static neutralisation to meet the requirements of high performance machinery
